Istio Configuration
Kiali is more than observability, it also helps you to configure, update and validate your Istio service mesh.

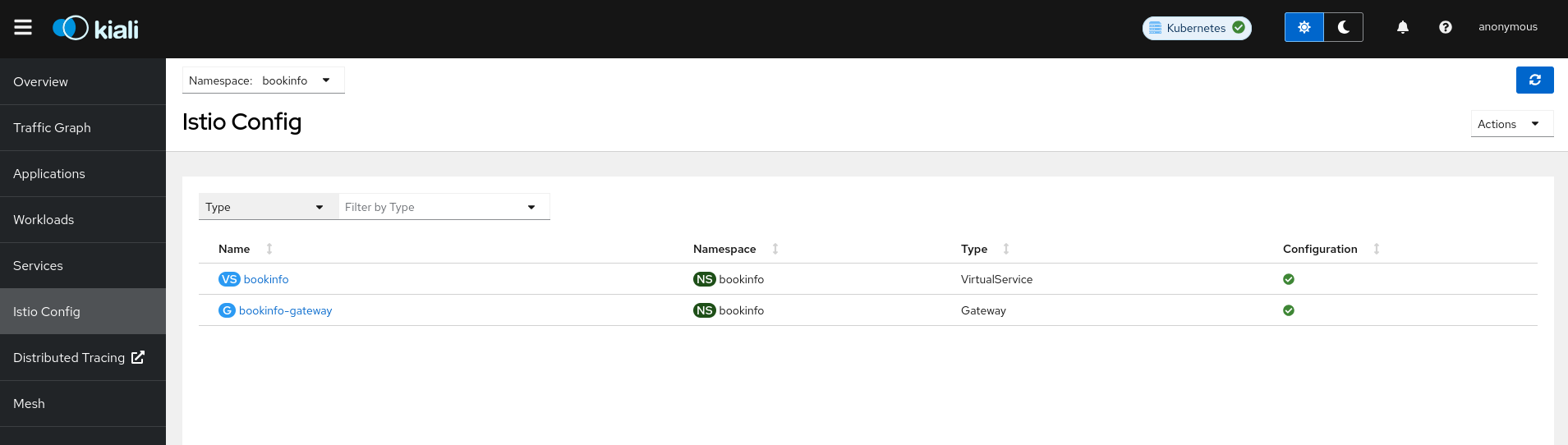

The Istio configuration view provides advanced filtering and navigation for Istio configuration objects, such as Virtual Services and Gateways. Kiali provides inline config editing and powerful semantic validation for Istio resources.
Validations
Kiali performs a set of validations on your Istio Objects, such as Destination Rules, Service Entries, and Virtual Services. Kiali’s validations go above and beyond what Istio offers. Where Istio offers mainly static checks for well-formed definitions, Kiali performs semantic validations to ensure that the definitions make sense, across objects, and in some cases even across namespaces. Kiali validations are based on the runtime status of your service mesh.
As of Kiali v2.25, validations support multi-primary Istio deployments, including cross-cluster MeshConfig validation.
Check the complete list of validations for further information.
Wizards
Kiali Wizards provide a way to apply an Istio service mesh pattern, letting Kiali generate the Istio Configuration. Wizards are launched from Kiali’s Action menus, located across the UI on relevant pages. Wizards can create and update Istio Config for Routing, Gateways, Security scenarios and more.
Istio Config Page Wizards

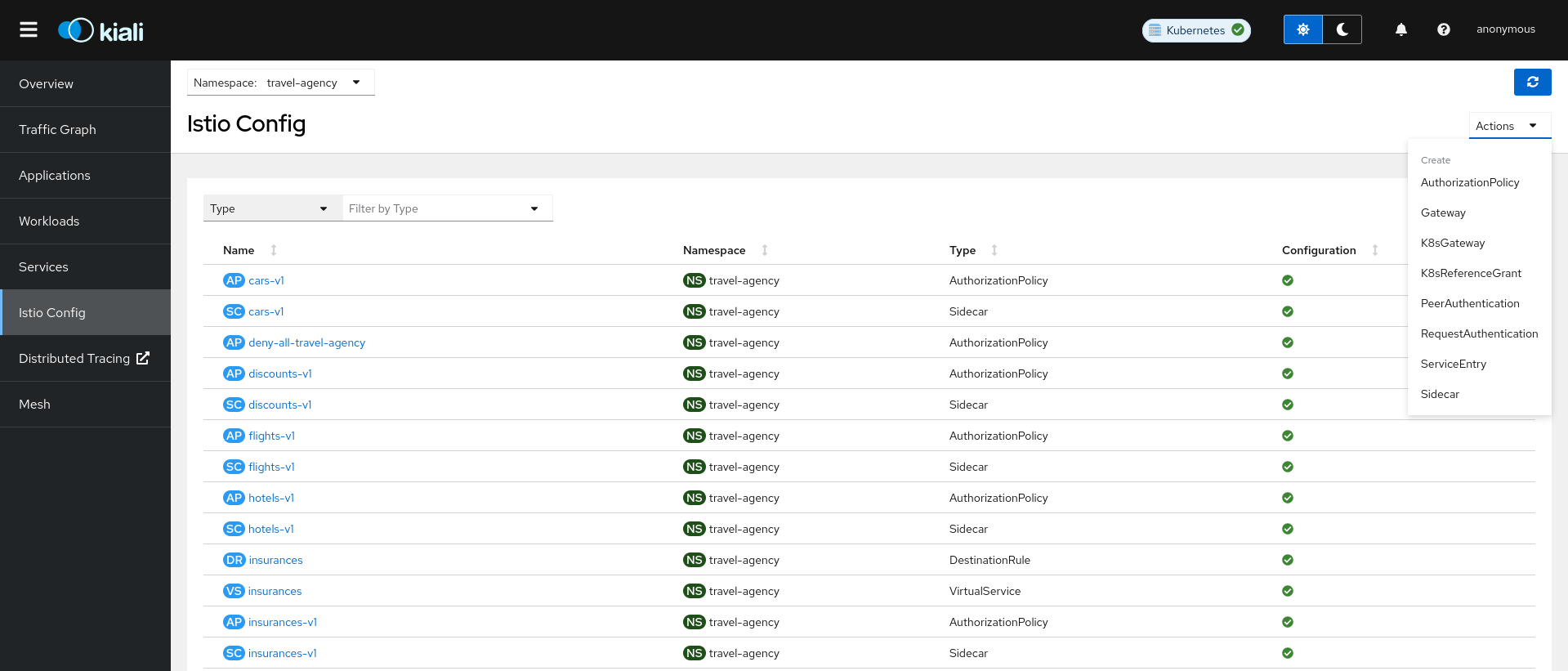

These Create Actions are available on the Istio Config page:
Authorization Wizards

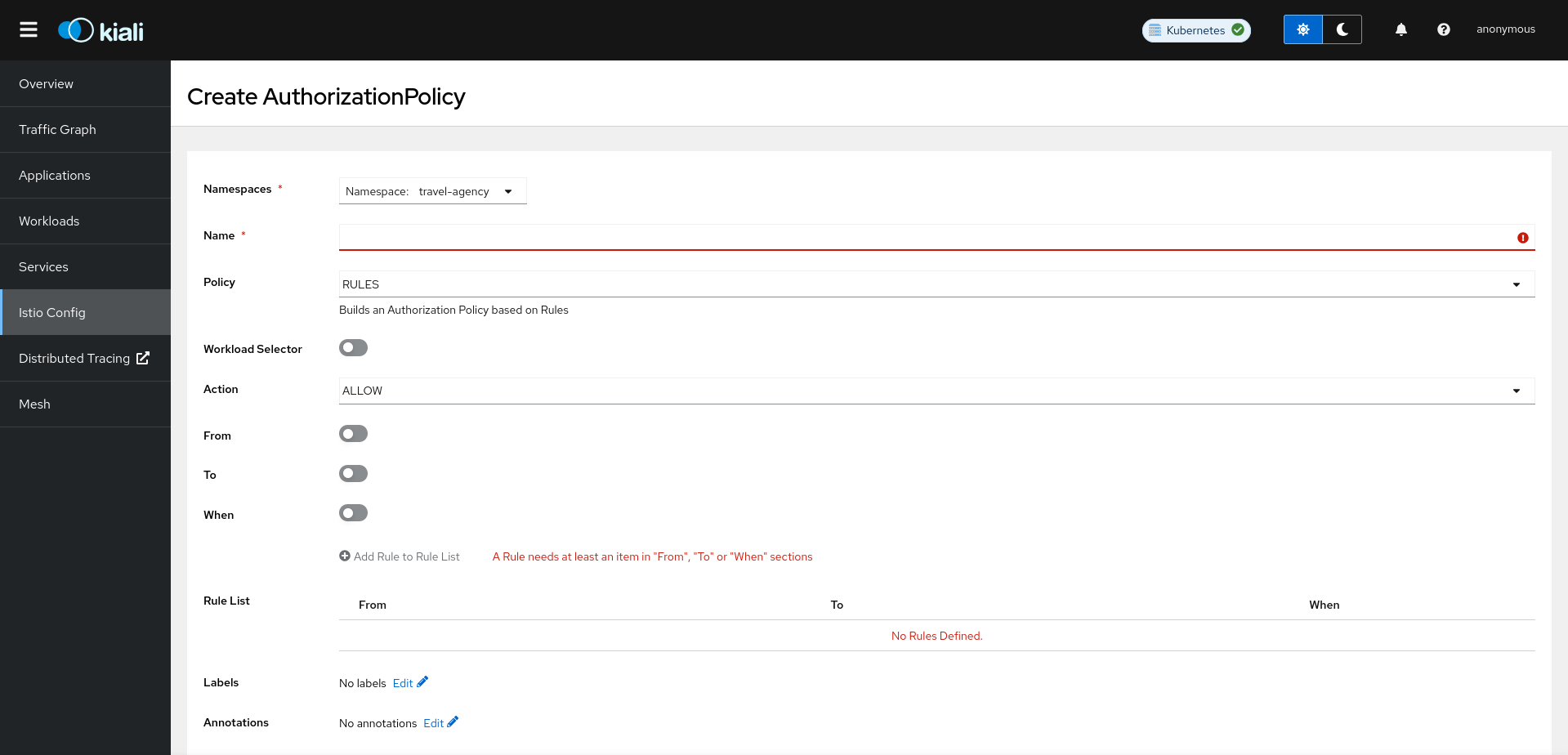

Kiali allows creation of Istio AuthorizationPolicy resources:
The AuthorizationPolicy wizard configures:
- Selector — which workloads this policy targets (by label selector)
- Action — ALLOW, DENY, AUDIT, or CUSTOM
- Rules — combining source principals, namespaces, IP blocks, HTTP methods, paths, and ports
- Provider — name of the external authorization provider (CUSTOM action only)
Istio PeerAuthentication resources:
The PeerAuthentication wizard configures:
- Selector — which workloads this policy targets
- Mutual TLS Mode — UNSET, DISABLE, PERMISSIVE, or STRICT
- Port-level mTLS — override the mTLS mode per specific port

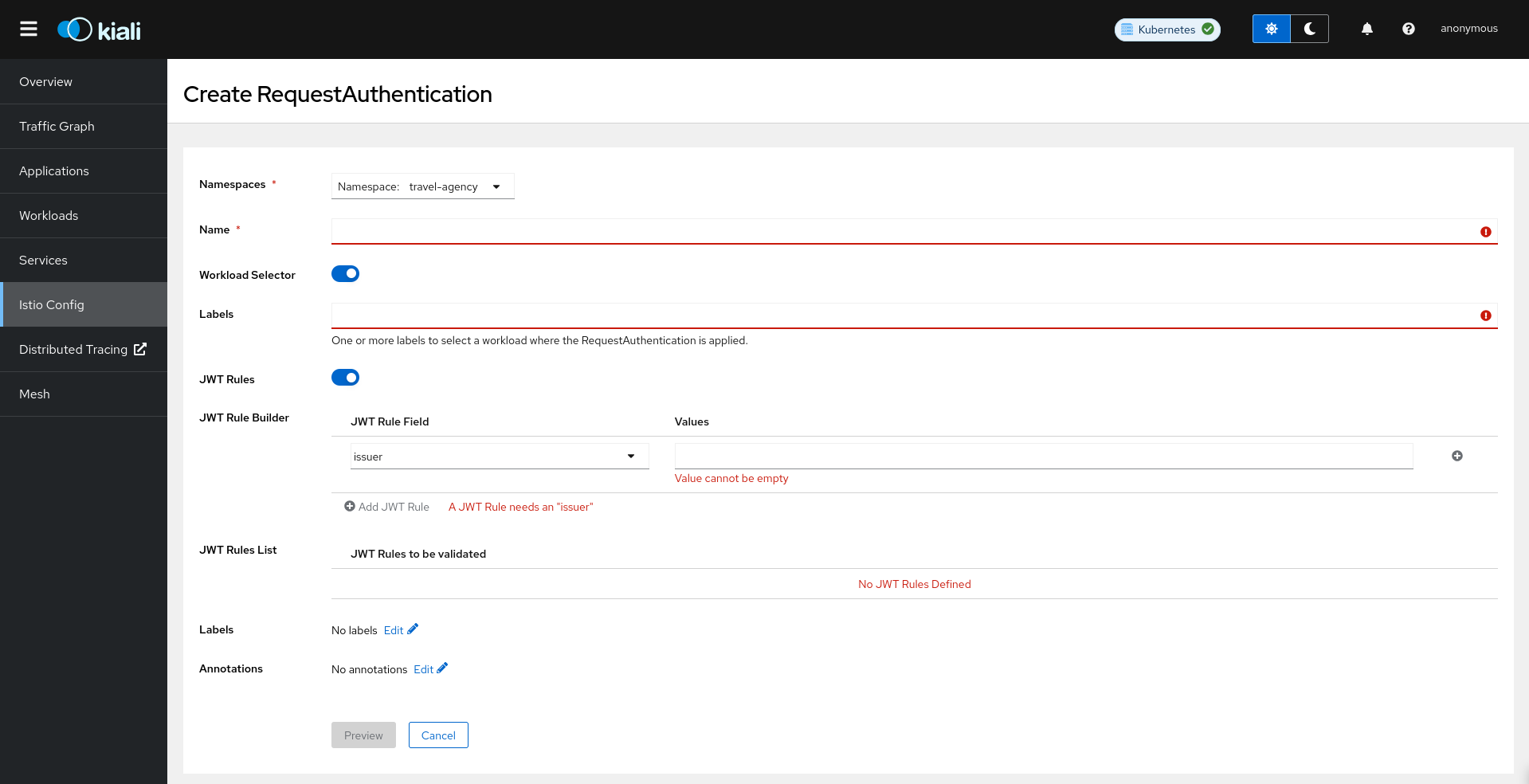

Istio RequestAuthentication resources:
The RequestAuthentication wizard configures:
- Selector — which workloads this policy targets
- JWT Rules — issuer, JWKS URI, and JWT locations in headers or query params
Traffic Wizards

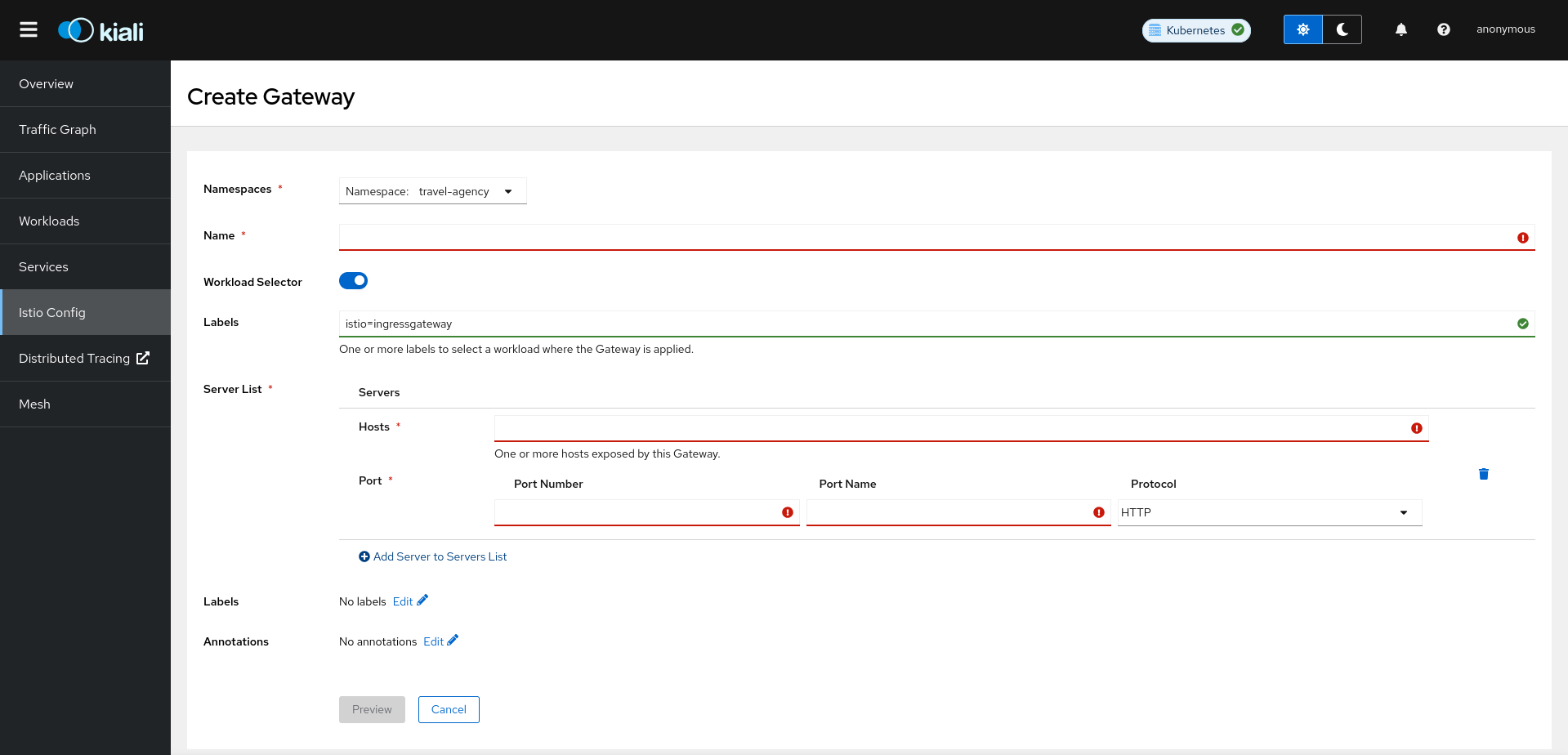

Kiali also allows creation of Istio Gateway resources.

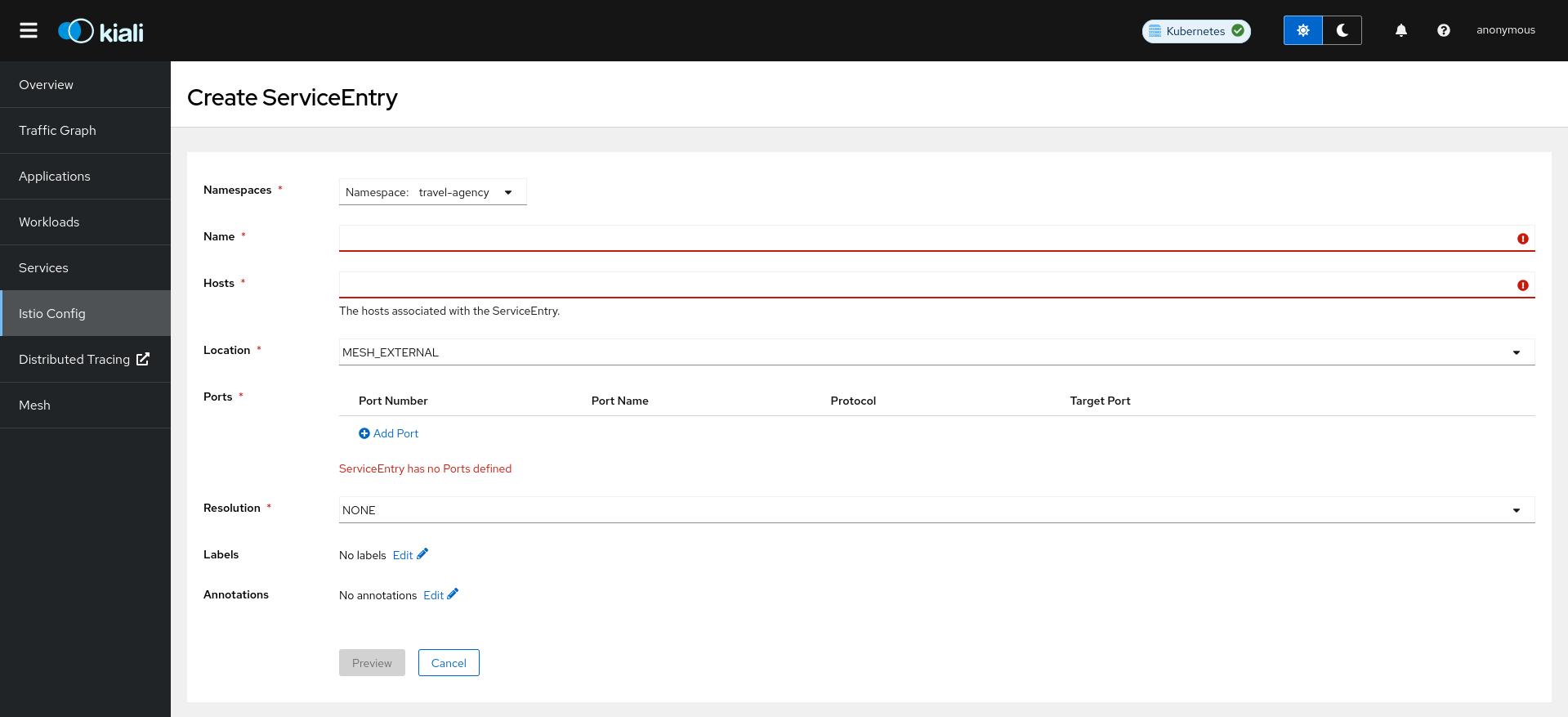

Istio ServiceEntry resources:
Istio Sidecar resources:

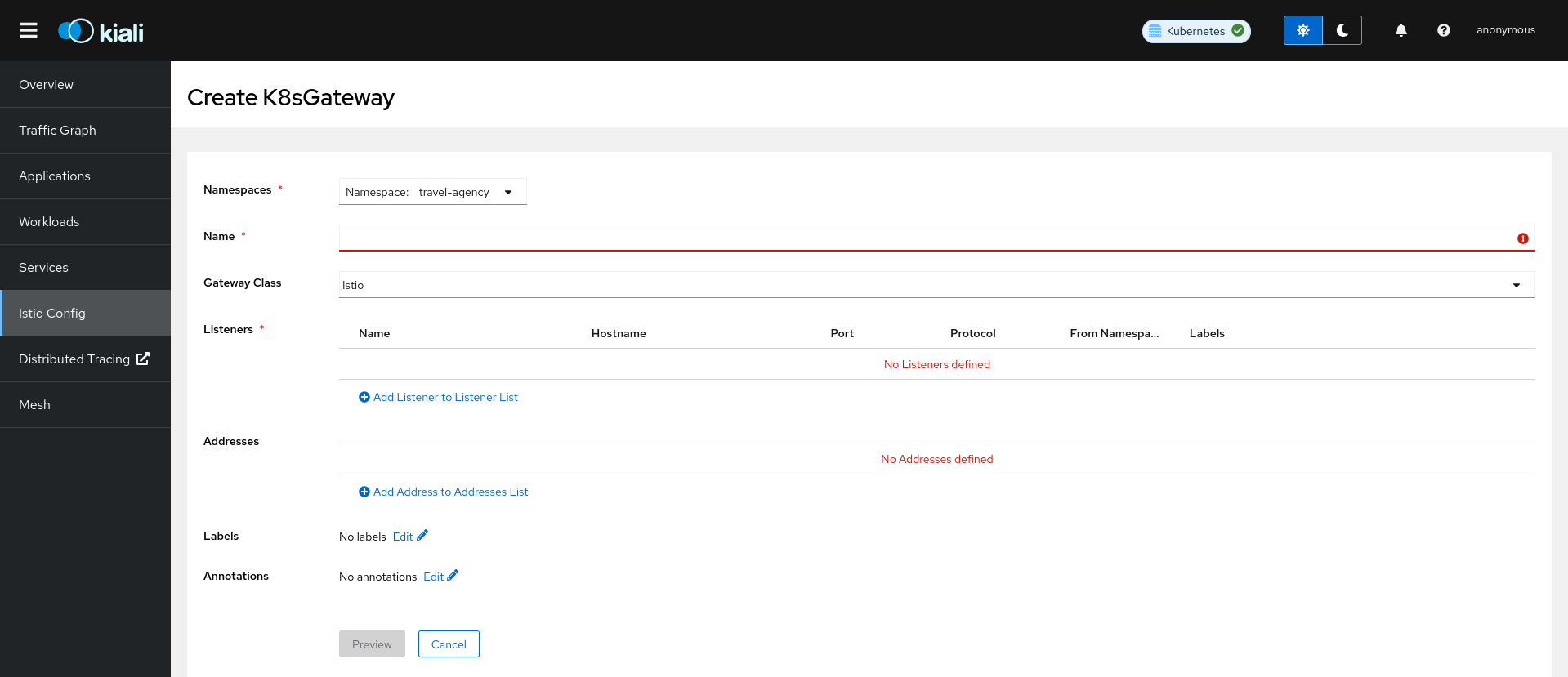

K8s Gateway resources:
Kiali supports the Kubernetes Gateway API (v1.5.0+) as an alternative to Istio’s own Gateway resource. Use K8s Gateway resources when your cluster manages ingress through the standard Gateway API rather than Istio-specific CRDs. The wizard lets you configure the GatewayClass, listeners, and allowed routes.

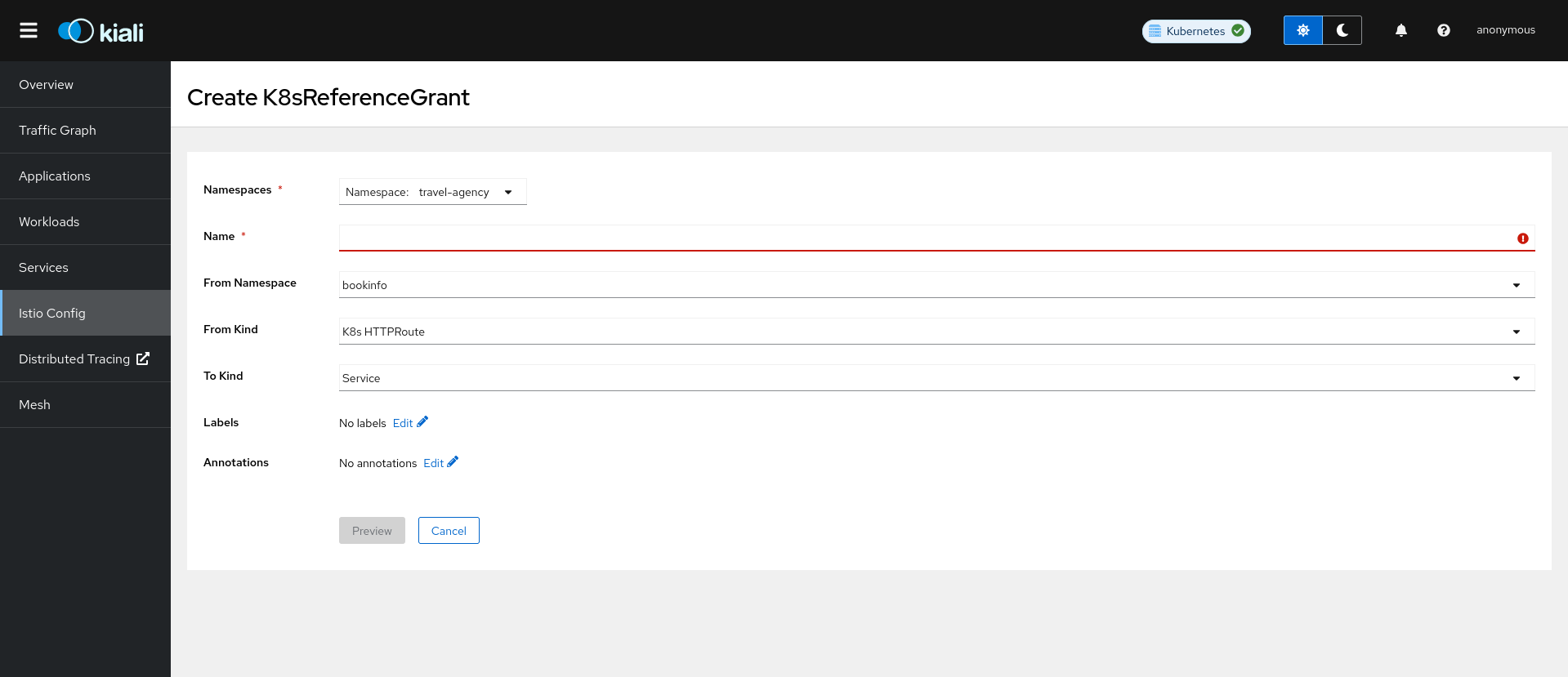

K8s Reference Grants resources:
K8s ReferenceGrants allow cross-namespace routing — they grant permission for a Gateway in one
namespace to reference a Service in another. The wizard configures the from and to selectors
required by the ReferenceGrant spec.
Other Kiali Wizards
Kiali also has Wizards available from the Namespaces page (Kiali >= 2.23) and many details pages, such as Service Detail to create routing rules. The Kiali Travel Tutorial goes into several of these wizards.
Namespaces Page Wizards

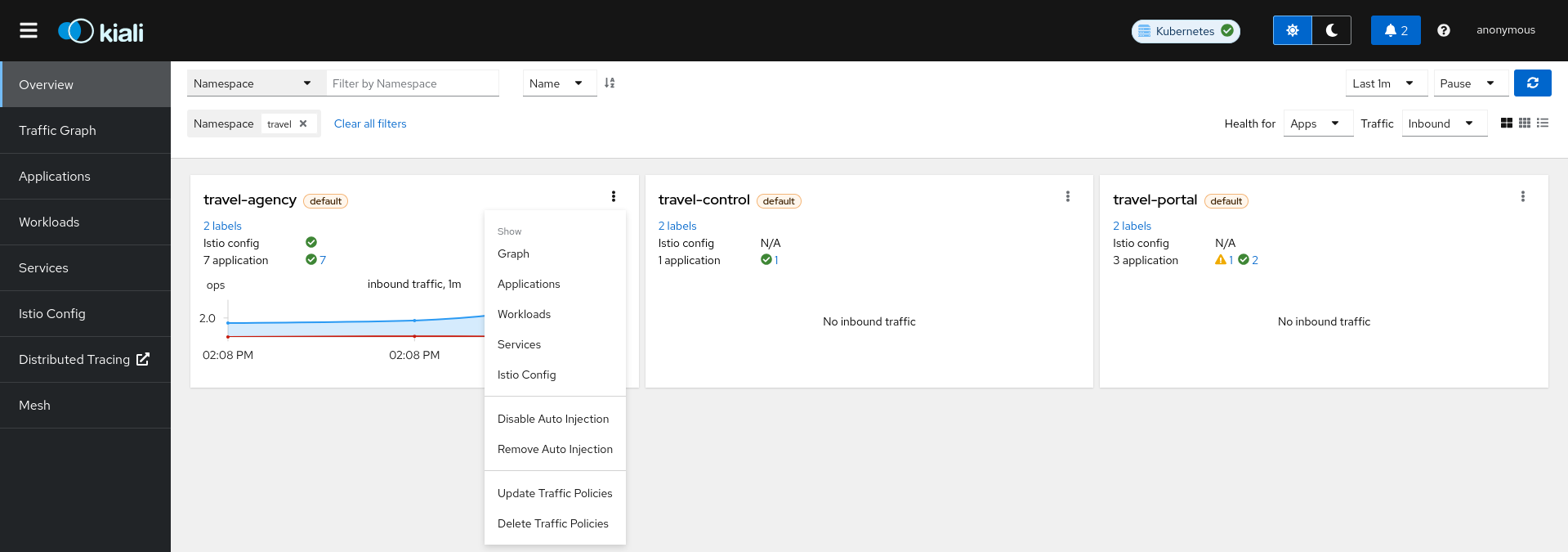

The Namespaces page (Kiali >= 2.23) has namespace-specific actions for creating traffic policies:
Service Wizards

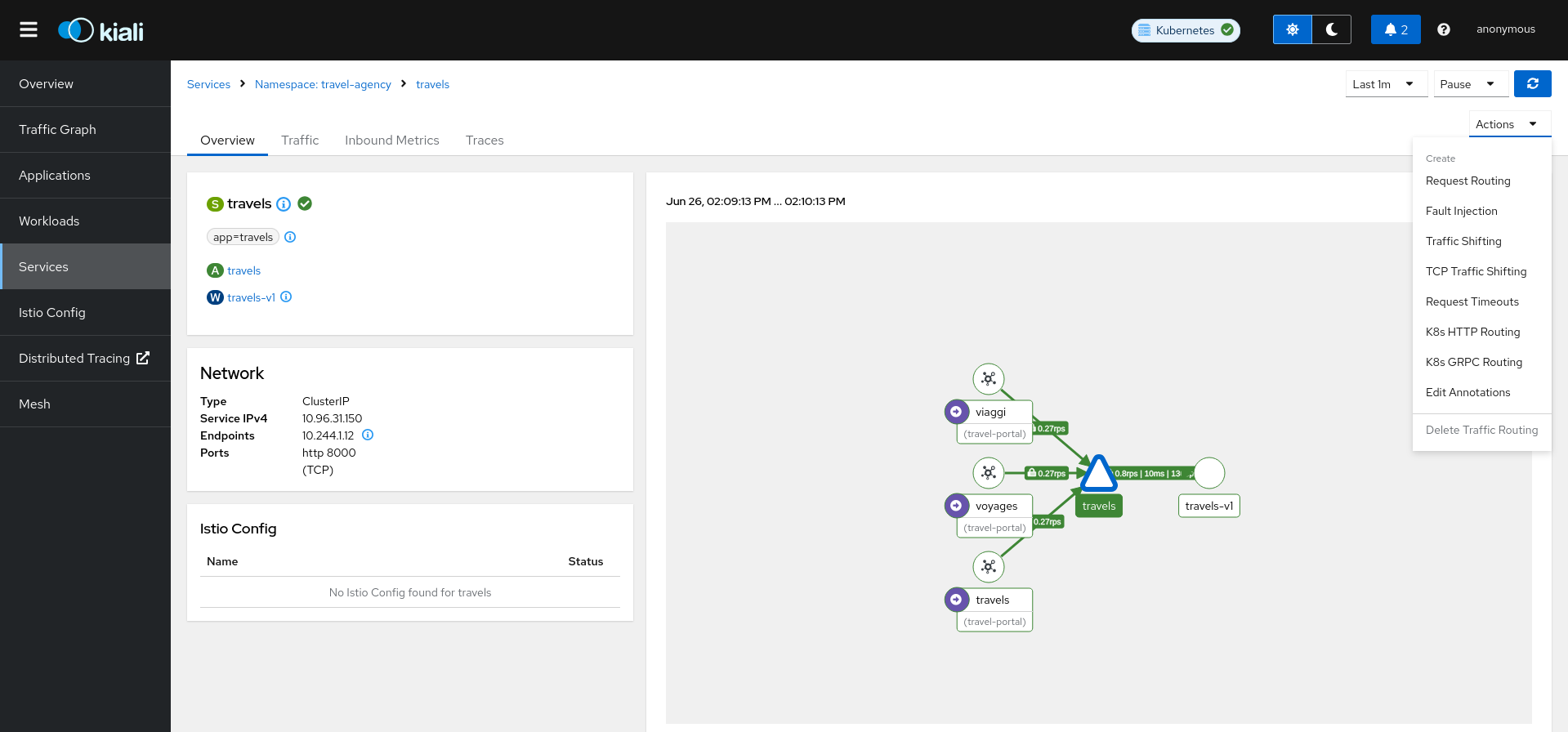

The Service Detail page offers several wizards to create traffic control config:
AI-Assisted Configuration
As of Kiali v2.22, Istio configuration can also be created and managed through Kiali’s AI Assistant (developer preview). The AI assistant can generate, inspect, and update Istio resources using natural language prompts.
